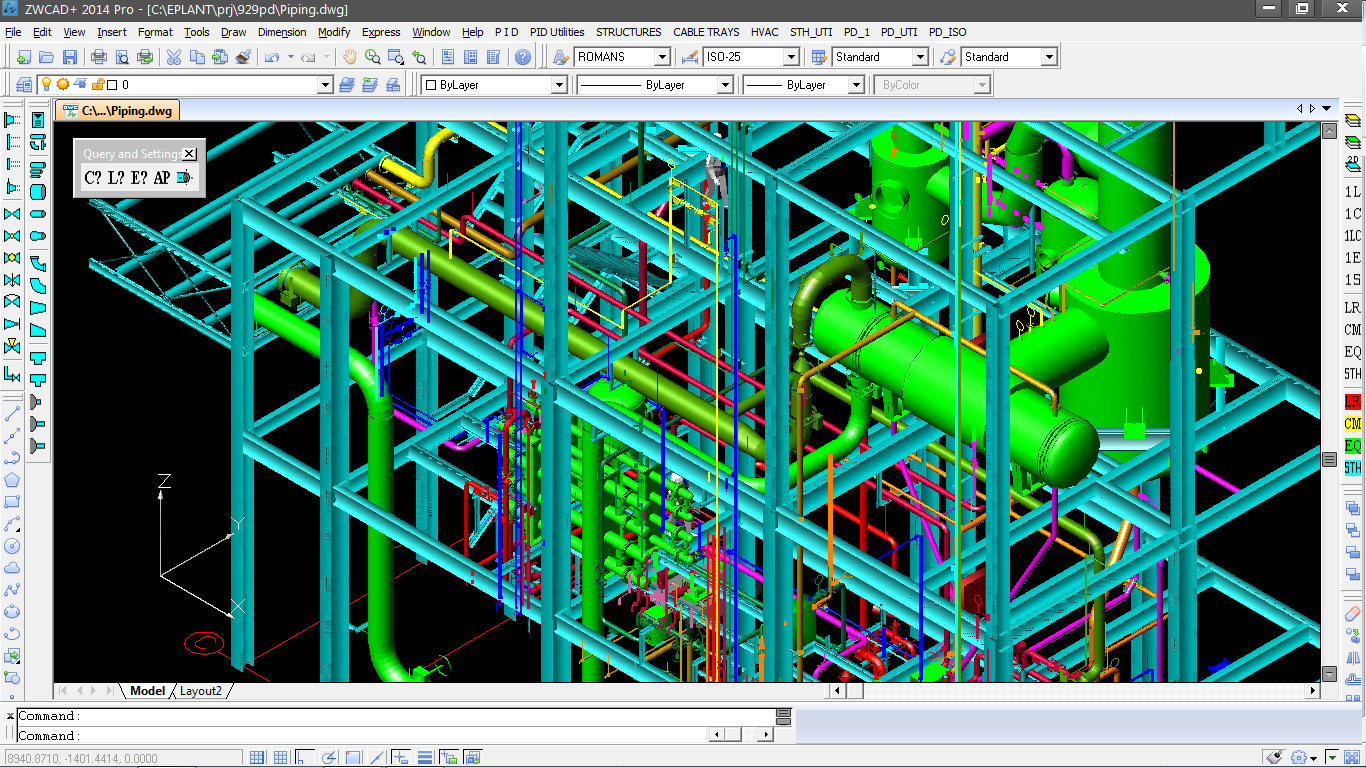

3D Models: drawing files are very small. 1000 piping lines generate a 6Mbytes drawing file only. Projects with several thousands piping lines are within the reach of EPLANT-Piping.

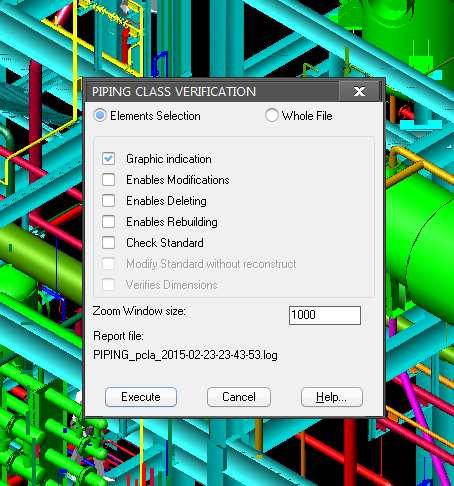

Component Catalog and Specifications: Piping components have a parametric definition, without reference to any standard nor specification in particular. The piping class sets the Material and the Dimensional Standard used for each component. In this way, the same component can be used in all the specifications that may require it. A project can use as many different standards as needed. User can modify and add new components without any limitation.

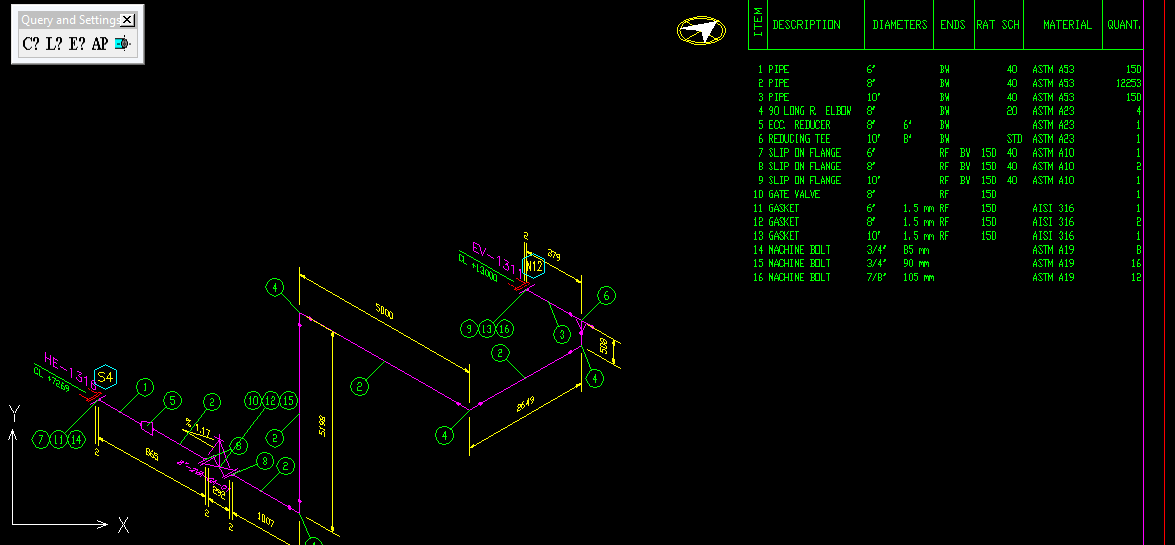

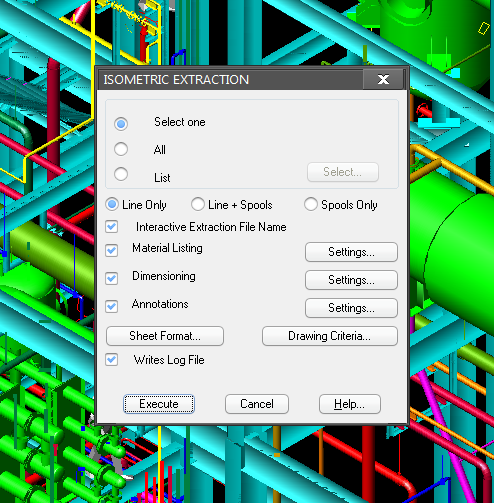

Piping Isometrics: Piping isometric projections with distorted scale are automatically generated from the 3D model with format, dimensions, notes and MTO listing. Every setting and format is easily modified on the fly. isometric drawings are "intelligent" 3D graphics: they contain the same dimensional and reference information as the original 3D model, allowing the interactive isometric annotation also.

2D Plans: Plans are automatically generated as flat drawings, with projected elements placed in different layers according their origin and retaining the same characteristics as the 3D models. They can automatically annotated with the required information: Line Number, Elevation, Coordinates, etc. 2D Plans are automatically updated when 3D Models change.

Materials: EPLANT-Piping is a complete material management system, because it allows to automatically integrate the material of all project 3D models and generate Material Reports of any kind and Material Requirements, assigning revisions and unique item numbering. Any arbitrary material custom code can be easily associated in any material report.

Free online Training Videos: high quality structured training videos are available to allow autonomous training.
